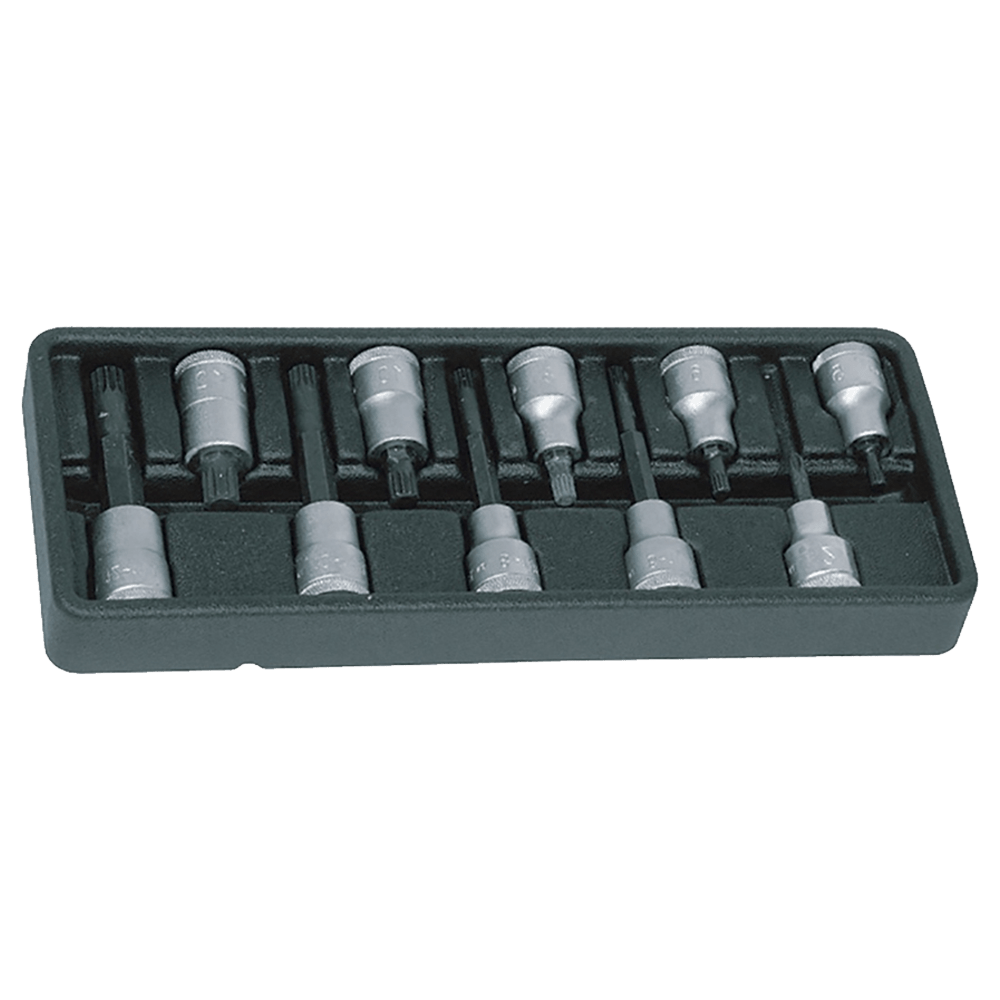

SOCKET GEDORE SPLINE SET 1/2 INX19PM 5D

Product Identity & Core Specs

Source‑verified from Gedore SA, Tools4, and Tool Centre

• Model: INX19 PM‑5D
• Code: GED617989
• Drive Size: 1/2″
• Type: Spline socket set (multi‑point screws)
• Operation: Manually operated
• Socket Material: Chrome Vanadium Steel (31CrV3)
• Bit Material: Molybdenum tool steel / 59CrV4
• Base: Knurled for grip
• Insert: Black matt‑finish insert (per Tools4 listing)
• Box: Blue powder‑coated steel box (per Tool Centre listing)

📦 Contents (Confirmed Across All Sources)

Sockets:

• INX19: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm
• INX19L (long): 6‑100 mm, 8‑100 mm, 10‑100 mm, 12‑100 mm

Bits:

• IKS19 No. 2 (Phillips/Pozidriv style multi‑point bit)

🛠️ Performance & Use Cases

• Designed for multi‑point spline screws
• Even‑wave contour applies torque to the flanks, reducing bolt‑head damage
• Suitable for slightly damaged bolt heads (per Tool Centre)
• Ideal for:
  • Automotive repair
  • Industrial maintenance
  • Mechanical workshops
  • Fabrication and assembly
