GROZ TAP & DIE SET C/STEEL 3-12MM ST-41M

KEY FEATURES

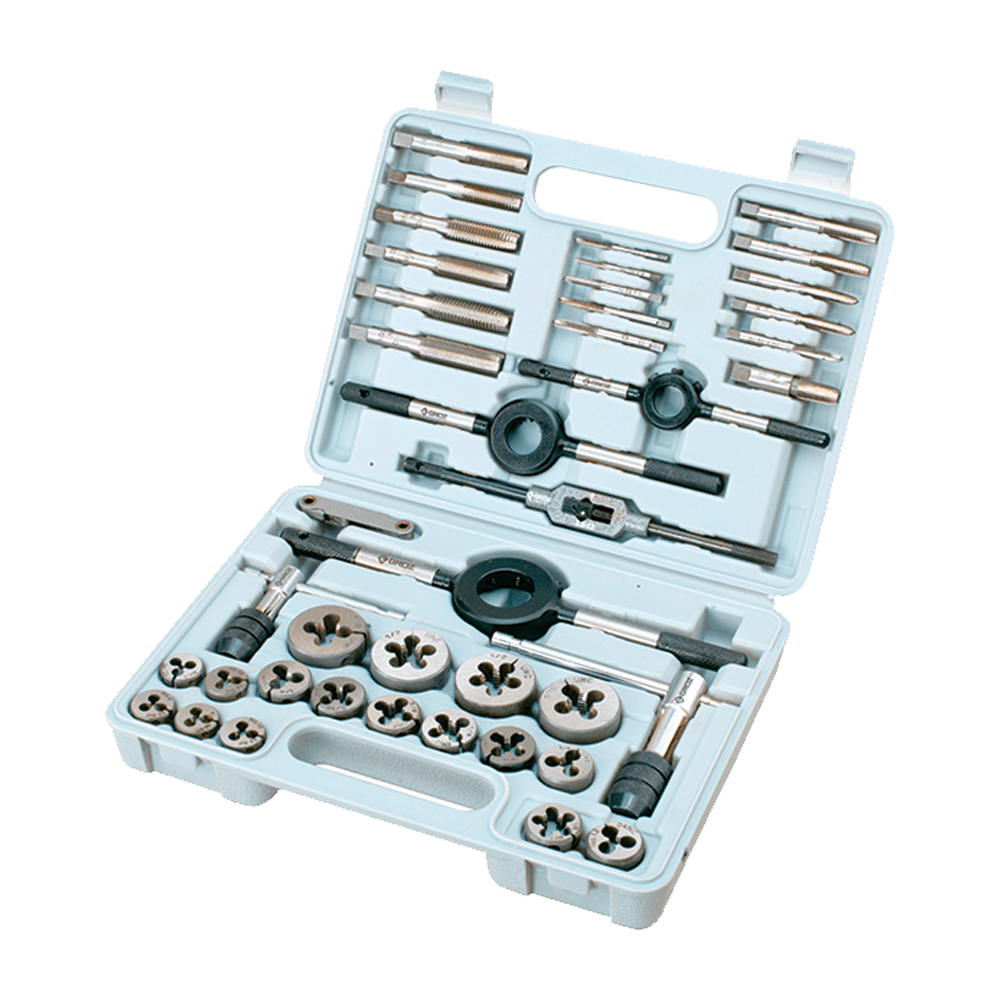

- A comprehensive set of professional taps and dies
- Supplied in a blow moulded PVC case
- All taps are right hand thread
- Set Contains:
- T Handle Tap Wrench 0 – 6mm
- T Handle Tap Wrench 6 – 12mm
- Bar Type Tap Wrench 0 – 12mm
- Die Holders for Round Dies of 13/16”Ø
- Die Holders for Round Dies of 1”Ø
- Die Holders for Round Dies of 1 1/2”Ø
- Thread Pitch Gauge 16 leaves 0,35 – 3mm
- 17 individual Hand Taps & Round Dies in sizes
- 3mm – 0,50mm
- 4mm – 0,70mm
- 4mm – 0,75mm
- 5mm – 0,80mm
- 5mm – 0,90mm
- 6mm – 1,00mm
- 7mm – 1,00mm
- 8mm – 1,00mm
- 8mm – 1,25mm
- 9mm – 1,00mm
- 9mm – 1,25mm
- 10mm – 1,25mm
- 10mm – 1,50mm
- 11mm – 1,50mm
- 12mm – 1,50mm
- 12mm – 1,75mm
- 1/8” – 28mm
- BSP Taper Used to provide a quick and easy start but this will not cut the thread down to the bottom of the hole
- Second used to increase the size of the cut
- Bottom used for follow through right to the bottom to obtain full depth of thread

KEY FEATURES

A comprehensive set of professional taps and dies
Supplied in a blow moulded PVC case
All taps are right hand thread
Set Contains:
T Handle Tap Wrench 0 – 6mm
T Handle Tap Wrench 6 – 12mm
Bar Type Tap Wrench 0 – 12mm
Die Holders for Round Dies of 13/16”Ø
Die Holders for Round Dies of 1”Ø
Die Holders for Round Dies of 1 1/2”Ø
Thread Pitch Gauge 16 leaves 0,35 – 3mm
17 individual Hand Taps & Round Dies in sizes
3mm – 0,50mm
4mm – 0,70mm
4mm – 0,75mm
5mm – 0,80mm
5mm – 0,90mm
6mm – 1,00mm
7mm – 1,00mm
8mm – 1,00mm
8mm – 1,25mm
9mm – 1,00mm
9mm – 1,25mm
10mm – 1,25mm
10mm – 1,50mm
11mm – 1,50mm
12mm – 1,50mm
12mm – 1,75mm
1/8” – 28mm
BSP Taper Used to provide a quick and easy start but this will not cut the thread down to the bottom of the hole
Second used to increase the size of the cut
Bottom used for follow through right to the bottom to obtain full depth of thread
