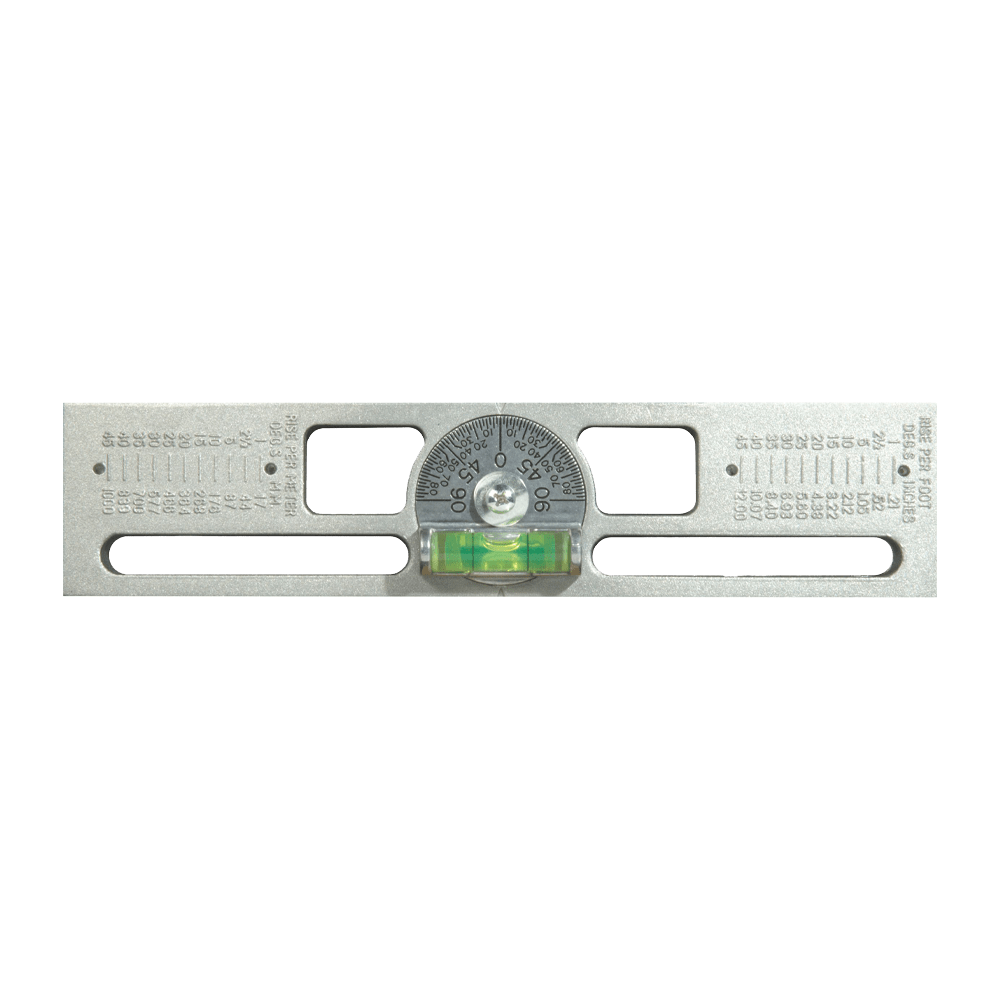

CURVOMARK LEVEL PRO-MAG CONTOUR

KEY FEATURES

• A lightweight aluminium, easy to use tool for determining angles, the Pro-Mag Level has cast-in-25—pound pull magnets that hold securely to any steel surface
• 360 degrees adjustable DSL with two 90 degree quadrants graduated in 21/2-degree increments
• Also cast in are tables used to convert degree-of-angle to rise-in-inches—per-foot or mm/m
• A groove on the bottom edge permits use on the small pipe
• The Pro-Mag Level is 225 mm long and, 50 mm high and 20 mm thick
• The unit is ideal for pipe fitter ,welder, jig builder or anyone who has to determine angles or do setup work

SPECIFICATIONS

• CODE: CNT8
• BARCODE: 24886073866
• HEIGHT: 4.00cm
• LENGTH: 25.50cm
• WIDTH: 6.00cm
• 0.59kg
